NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry

  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
  • NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry
Herkunftsort Jiangsu, China
Markenname Juneng
Min Bestellmenge 1 Set
Preis $7,760-8,000 / set

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Gewicht 1000 kg Filtrationsbereich 2-70 ㎡
Filterkuchenvolumen 30-1400 l Arbeitsdruck 0,1–0,4 MPa
Maximaler Druck 0,5 MPa Arbeitstemperatur ≤ 150 °C
Maschinenvolumen 120-7200 l Ölkapazität Öl 0,4-0,6
Behandlungskapazitätsharz 1-1.5 Behandlungskapazität Getränk 0,1-0,4
Paketgröße 123*456*789 cm Paketgewicht 1,2 T
Material Edelstahl Betriebstyp vollständig geschlossen
Rückstandsabgabe Pneumatikventil
Hervorheben

vertical pressure leaf filter for oil

,

1000kg vertical leaf filter

,

oil industry pressure leaf filter
Hinterlass eine Nachricht
Produkt-Beschreibung
Matte Sandblasting Vertical Pressure Leaf Filter for Oil Industry
Product Specifications
Attribute Value
Condition New
Weight (kg) 1000
Warranty 1 Year
Product Description
Product Application

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

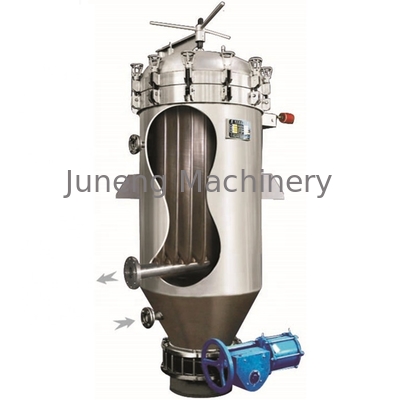

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 0 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 1
Technical Specifications
Model Filtration area ㎡ Filter cake volume L Treatment Capacity Work Pressure Mpa Work temperature ℃ Machine volume L
Oil Resin Beverage Rated pressure Max pressure
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 0.1-0.4 0.5 ≤150 250
NYB-7 7 105 1-1.8 3-6 4-7 0.1-0.4 0.5 ≤150 420
NYB-10 10 150 1.6-3 5-8 6-9 0.1-0.4 0.5 ≤150 800
NYB-12 12 240 2-4 6-9 8-11 0.1-0.4 0.5 ≤150 1000
NYB-15 15 300 3-5 7-12 10-13 0.1-0.4 0.5 ≤150 1300
NYB-20 20 400 4-6 9-15 12-17 0.1-0.4 0.5 ≤150 1680
NYB-25 25 500 5-7 12-19 16-21 0.1-0.4 0.5 ≤150 1900
NYB-30 30 600 6-8 14-23 19-25 0.1-0.4 0.5 ≤150 2300
NYB-36 36 720 7-9 16-27 23-31 0.1-0.4 0.5 ≤150 2650
NYB-40 40 800 8-11 21-34 30-38 0.1-0.4 0.5 ≤150 2900
NYB-45 45 900 9-13 24-34 36-44 0.1-0.4 0.5 ≤150 3200
NYB-52 52 1040 10-15 27-45 42-51 0.1-0.4 0.5 ≤150 3800
NYB-60 60 1200 11-17 30-52 48-60 0.1-0.4 0.5 ≤150 4500
NYB-70 70 1400 12-19 36-60 56-68 0.1-0.4 0.5 ≤150 5800
NYB-80 80 1600 13-21 40-68 64-78 0.1-0.4 0.5 ≤150 7200
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 2 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 3 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 4
Main Features
  • With no cloth and filter paper, it greatly reduces filtration costs
  • The fully closed operation is environmentally friendly without material loss
  • Vibration residue falling greatly reduces labor intensity and realizes continuous operation
  • Residue discharging through the pneumatic valve greatly reduces labor intensity of workers
  • The residues in the liquids are subject to activated carbon (carclazyte) filtering or bleaching filtering. It can completely replace the plate and frame filter and is a revolutionary device in the filter industry
Detailed Images
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 5 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 6
Related Products
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 7
91.8% Response Rate
Milk Separator
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 8
91.8% Response Rate
Decanter Centrifuge
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 9
91.8% Response Rate
Multi-function Filter
Certifications
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 10
Our Service
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 11 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 12
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • View our Factory
After-Sales Service
  • Training how to install the machine, training how to use the machine
  • Engineers available to service machinery overseas
Packing & Delivery
NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 13
Packaging Details

Size: 123 (L) * 456 (W) * 789 (D)

Weight: 1.2 T

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Exhibitions We Attended

We have attended various exhibitions during these years, such as Canton Fair.

NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 14 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 15 NYB Vertical Pressure Leaf Filter 1000kg for Oil Industry 16
